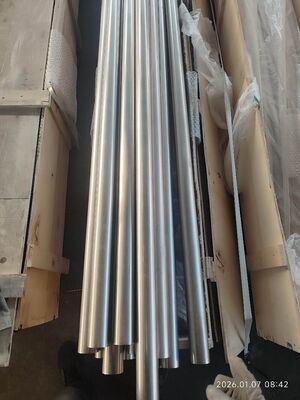

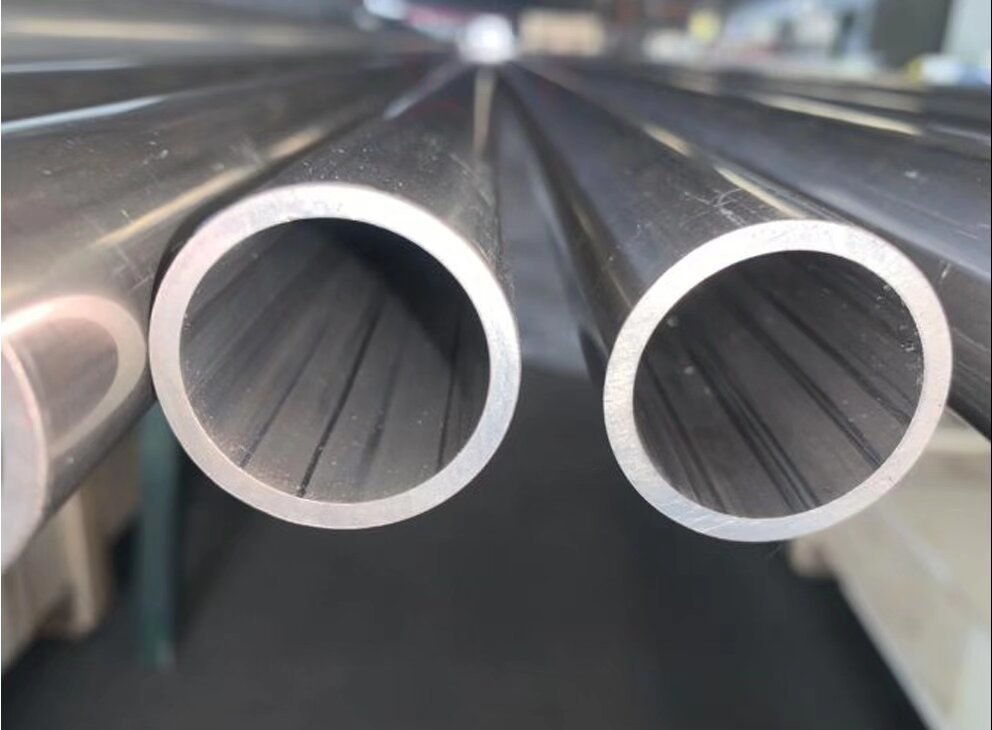

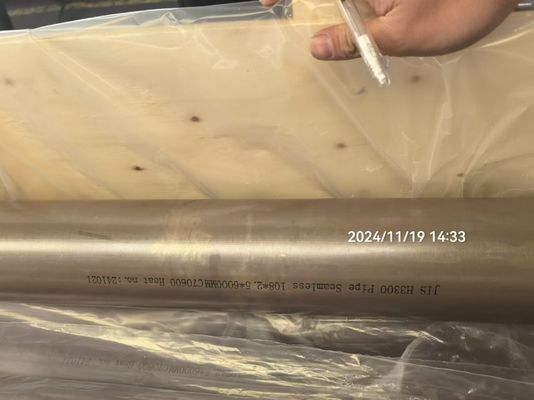

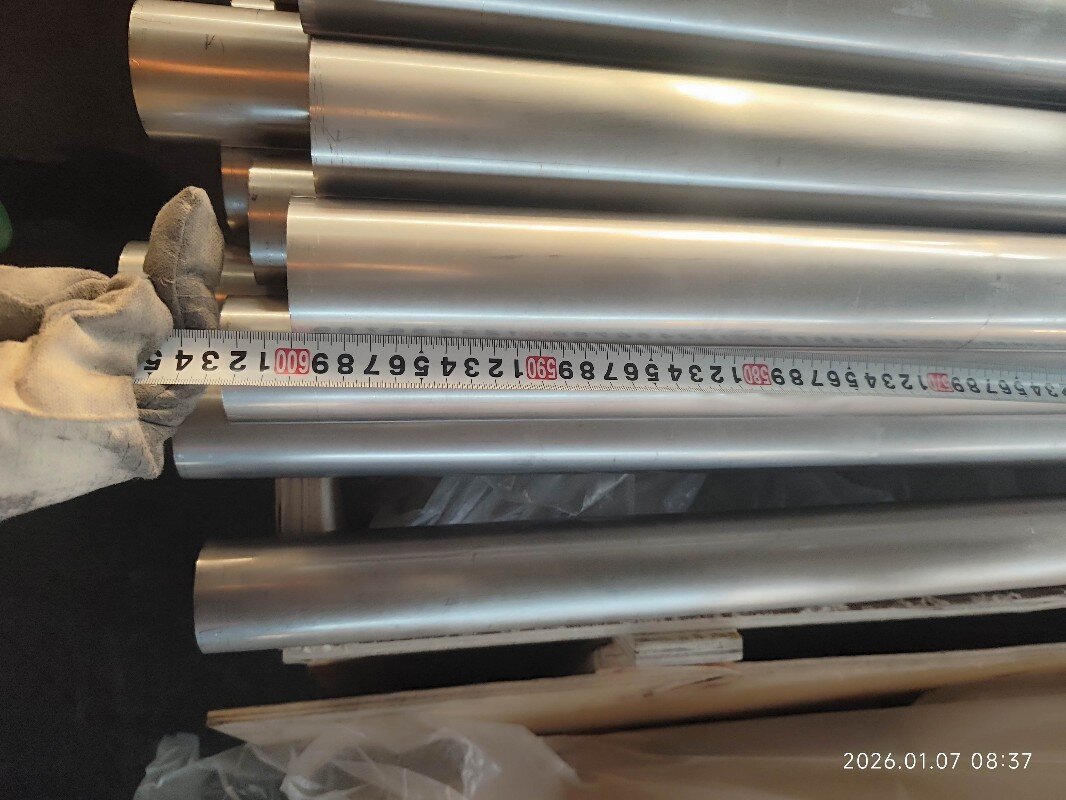

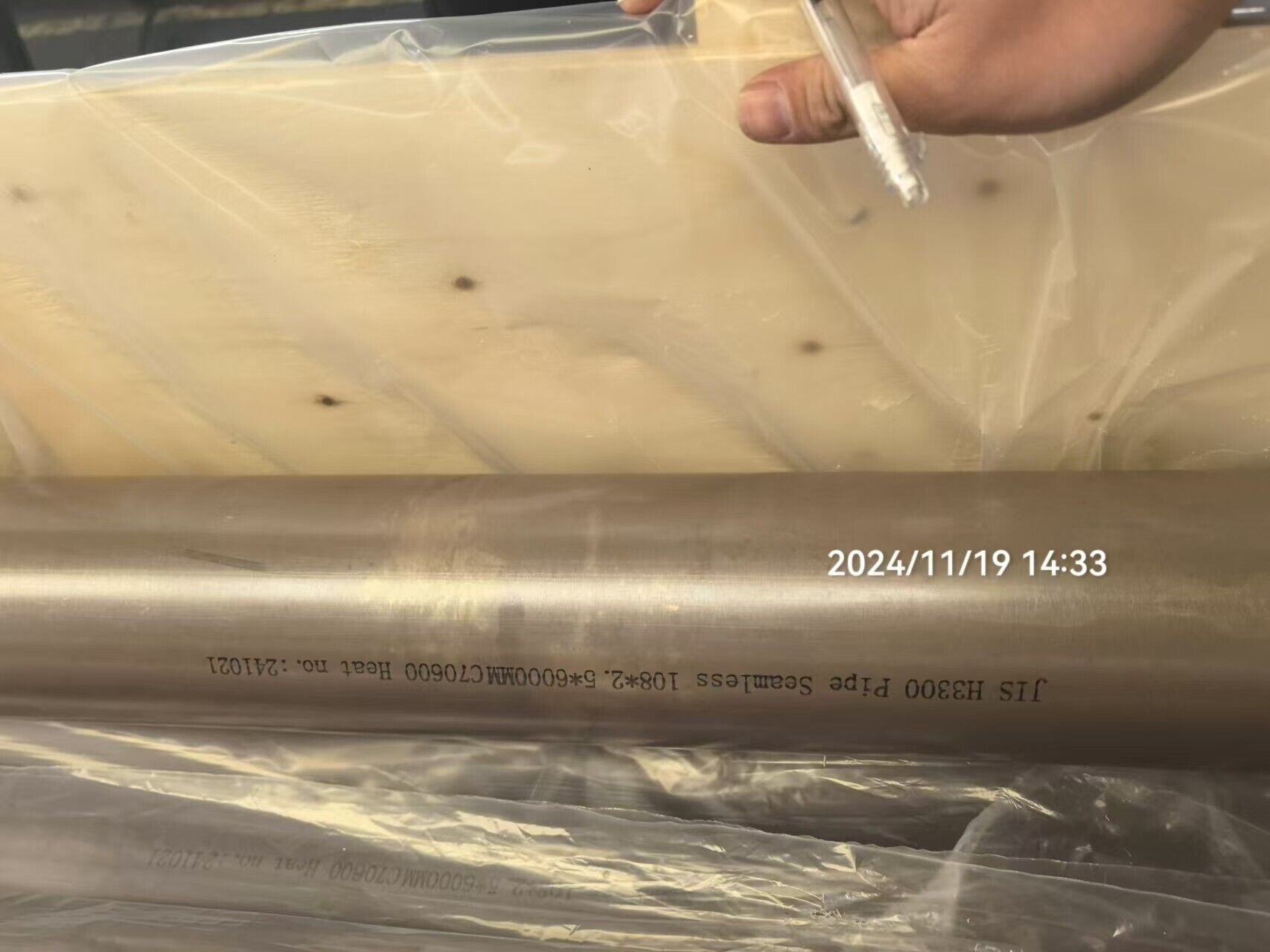

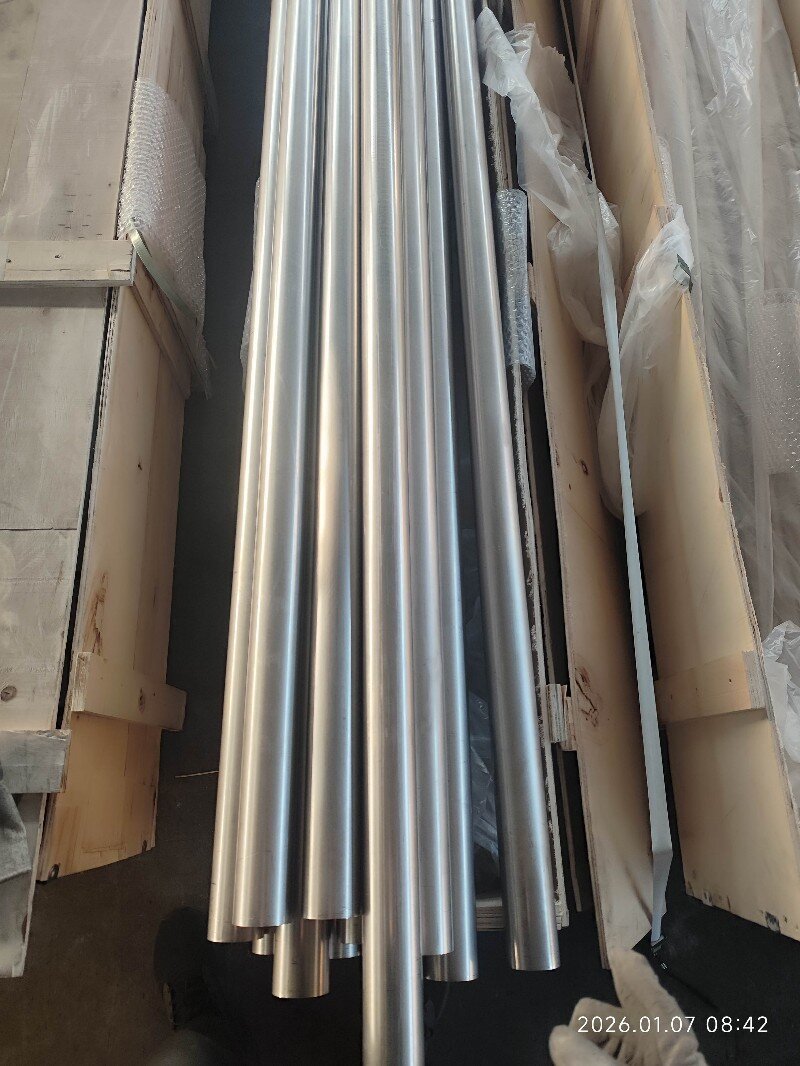

C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger

  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
Herkunftsort Shanghai, China
Markenname TOBO
Zertifizierung ISO/TUV/SGS
Modellnummer Kupfer-Nickel-Rohr
Min Bestellmenge 1 Stk
Preis Verhandlungsfähig
Verpackung Informationen Standard-Versandpaket
Lieferzeit 15-30 Arbeitstage
Zahlungsbedingungen T/T, Western Union
Versorgungsmaterial-Fähigkeit 10 t/Monat
Produktdetails
Produktname C71500 Nahtloser Kupfer-Nickel-Schlauch, Präzision für Wärmetauscher Verwendungen Bau-Dekoration
Streckgrenze Hoch Verbindung Schweißen
Temperaturbewertung 400°F Bearbeitbarkeit Gut
Verbindungsmethoden Schweißen, Löten Technik Kalt gezogen, warmgewalzt
Produkte Kupfer-Nickel-Rohr Technik Casting
Durchmesserbereich 1/2 Zoll bis 24 Zoll MaterialZusammensetzung Kupfer-Nickel-Legierung (üblicherweise 90/10 oder 70/30 Cu-Ni)
Anwendung Klimaanlage oder Kühlschrank Größe Maßgeschneidert
Wandstärke Zeitplan 10 bis Zeitplan 40 Lieferung nach Menge
Hinterlass eine Nachricht
Produkt-Beschreibung

C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger



1.Product Introduction



Copper nickel pipe is a high‑performance alloy tube manufactured from Cu‑Ni systems, primarily grades 90/10 (C70600) and 70/30 (C71500), with controlled additions of iron and manganese. Available in seamless and welded forms, it complies with ASTM B466, ASTM B111, ASME SB111, EN 12451 and JIS H3300. It is the preferred material for seawater and corrosive fluid handling.



2.Product Advantages

  • Outstanding resistance to seawater, brackish water, and brine corrosion.

  • Natural biofouling protection – copper ions inhibit marine organism attachment.

  • High resistance to erosion‑corrosion and impingement attack.

  • Excellent weldability, formability, and thermal conductivity.

  • Exceptional longevity – proven service life over 50 years in marine systems.

  • Immune to chloride stress‑corrosion cracking (SCC).

  • Lower weight than steel for equivalent pressure ratings.

  • More economical than titanium or high‑nickel alloys.



3.Product Applications

  • Shipbuilding & offshore – seawater cooling, ballast, fire‑fighting, and sanitary piping.

  • Oil & gas platforms – topside process lines, subsea umbilicals, and riser cladding.

  • Desalination – evaporator tubes and brine heaters.

  • Power generation – condenser tubes and cooling water circuits.

  • Industrial heat exchangers – chemical, petrochemical, and food processing.

  • Marine renewable energy – tidal/wave generator cooling systems.

  • Aquaculture – seawater supply and fish cage structures.

  • Automotive & aerospace – brake lines, power steering tubes, and aircraft ducting.

​C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger 0

4.Key Product Parameters

Parameter 90/10 (C70600) 70/30 (C71500)
Composition (wt%) Cu ≥88.6, Ni 10, Fe 1.4, Mn 0.8 Cu ~70, Ni ~30, Fe 0.6, Mn 0.5
Tensile Strength (MPa) 303 – 414 350 (typical)
Yield Strength Rp0.2 (MPa) 110 – 393 (temper dependent) 120 (typical)
Elongation (%) 42 35
Elastic Modulus (GPa) 140 140
Thermal Conductivity (W/m·K) 50 29
Density (g/cm³) 8.90 8.95
Melting Range (°C) 1080 – 1120 1170 – 1240
OD Range – Seamless (mm) 6 – 159 6 – 159
OD Range – Welded (mm) up to 419 up to 419
Wall Thickness – Seamless (mm) 0.5 – 8.0 0.5 – 8.0
Wall Thickness – Welded (mm) up to 10.0 up to 10.0
Standard Lengths 6 m, 12 m, or custom 6 m, 12 m, or custom



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. 3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
